Mitsubishi

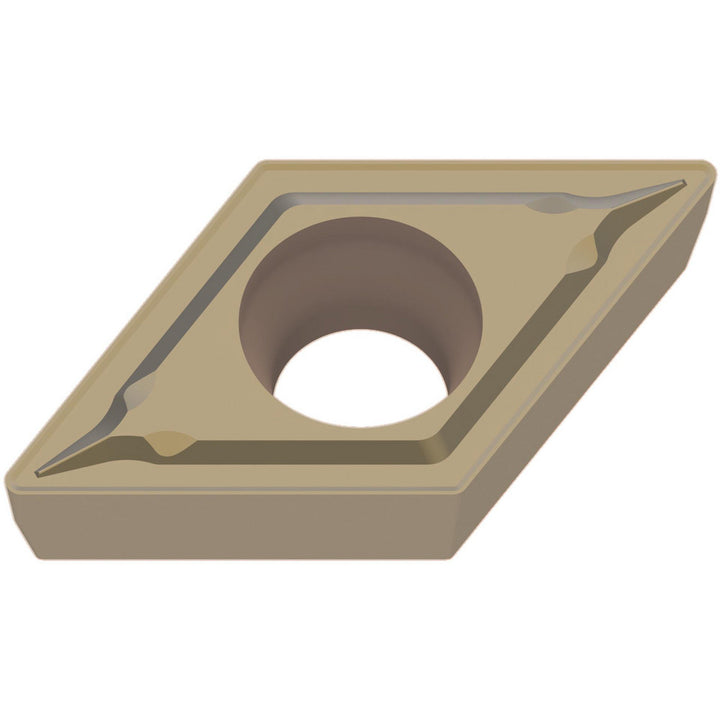

Rhombic 55 3/8" IC Carbide Insert, Grade MC7025, CVD - Mitsubishi 660316
MFR# 660316
$24.39List $31.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRhombic 55
GradeMC7025
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 660316 is a carbide indexable insert, grade MC7025, CVD coated.
Specifications
Chip breakerMM
Clearance codeC
Coating finishCVD
Corner radius in1/64
Included angle55.00
Inscribed circle in3/8
Insert handNeutral
Insert materialCarbide
Insert shapeRhombic 55
Insert size code3
Insert styleDCMT
Insert thickness in5/32
Manufacturer gradeMC7025
Number of cutting edges2
Relief angle7.000
Tolerance codeM
