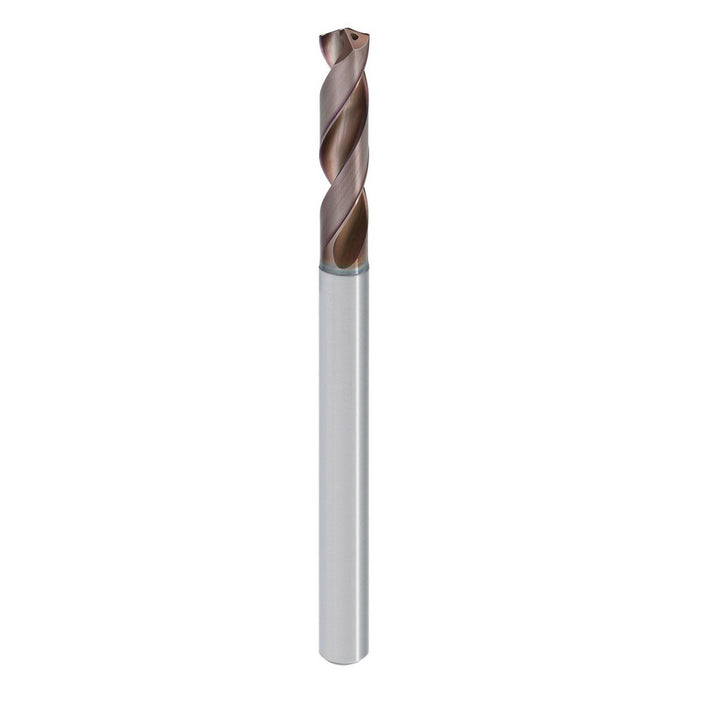

0.3543" Carbide Drill Bit, TiAlN, 140° point - Mitsubishi 667219
MFR# 667219Series MVS
$202.85List $247.04
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Mitsubishi 667219 is a 0.3543" Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. Series MVS.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeHigh Performance; High Precision
Drill bit size0.3543
Drill point angle140
Drill point length0.0630
Flute by diameter ratio3xD
Flute length1.8346
Flute typeHelical
Maximum drilling depth1.1260
Number of flutes2
Overall length4.0000
Point typeX-Thinning
Primary workpiece materialSteel
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Structural Steel; Tempered Steel; Iron; High Strength Bronze; Hardened Steel; Copper; Cast Iron; Carbon Steel; Bronze; Brass; Aluminum; Aluminum Alloy
Shank diameter0.3937
Shank length2.0866
Shank typeCylindrical
Specification designationISO
Spiral typeRight Hand
Tool applicationCross Hole; Drilling; Stack Drilling
Tool materialCarbide
Web configurationParallel
Web thinningX-Thinned
