Mitsubishi

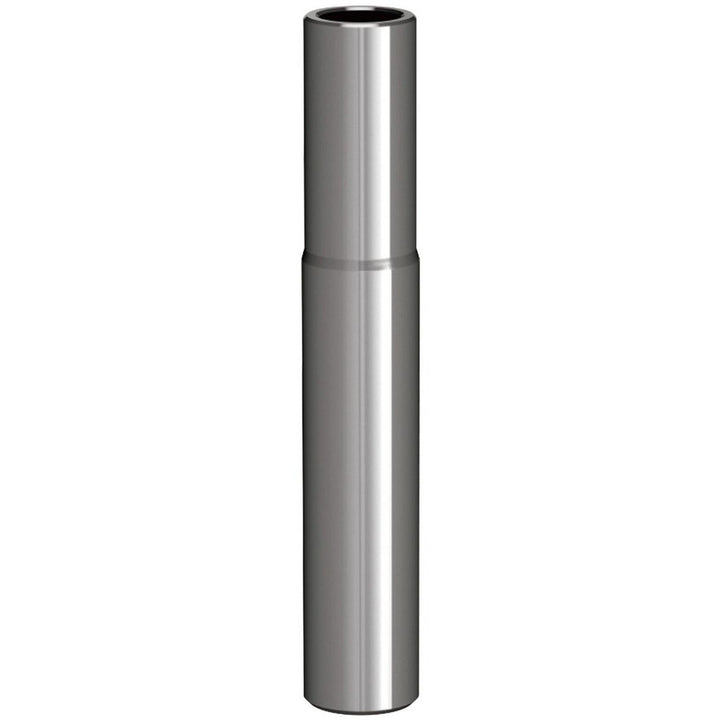

End Mill Holders, Adapter - Mitsubishi 683075
MFR# 683075Series iMX
$902.97List $975.69
Save 7%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitsubishi 683075 is a End Mill Holders, Adapter.
Specifications
Arbor length3.5430
Clamping depth in1-1/2
Coolant typeInternal
Extended reachNo
For use withiMX20 End Mill Head
Hole diameter0.75
IncludesiMX20 End Mill Holder
Machine side connection size19.05
Machine side connection typeStraight
Maximum rpm10000.000
Nose diameter in0.75
Overall length3.5430
Projection2.0429
Shank diameter in3/4
Shank typeStraight
Through coolantYes
Tir0.000200
Tooling side connection typeThreaded
