Mitsubishi

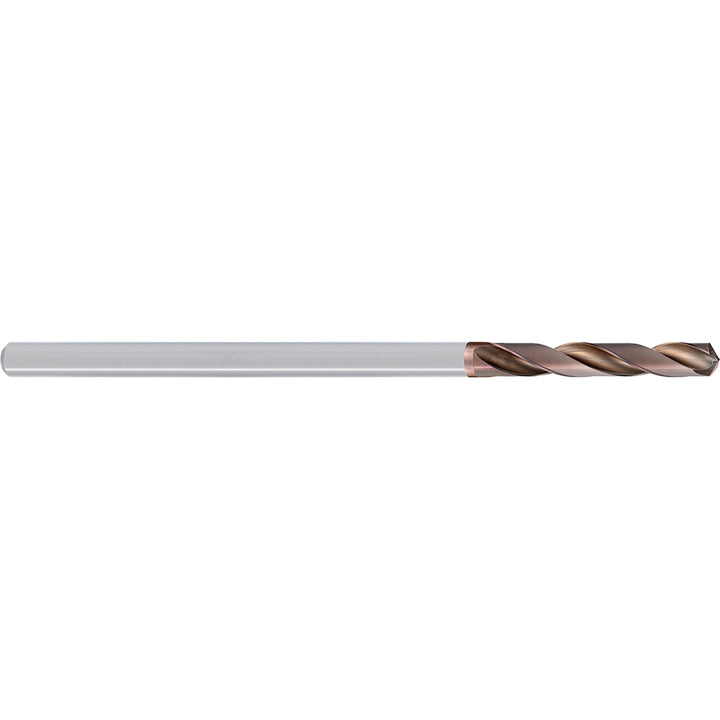

5/8" Carbide Drill Bit, TiAlN, 140° point - Mitsubishi 693661
MFR# 693661Series MVE
$333.70List $406.41
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/8
Flutes2
CoatingTiAlN
Description
The Mitsubishi 693661 is a 5/8" Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. Series MVE.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance; High Precision
Drill bit size in5/8
Drill point angle140
Drill point length0.1140
Flute by diameter ratio2xD
Flute length2.3980
Flute typeHelical
Maximum drilling depth1.3640
Number of flutes2
Overall length4.6410
Point typeX-Thinning
Primary workpiece materialSteel
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Structural Steel; Tempered Steel; Nickel Alloy; Nickel; Iron; High Strength Bronze; Hard Material; Hardened Steel; Copper; Cast Iron; Carbon Steel; Bronze; Brass
Shank diameter0.63
Shank length2.2440
Shank typeCylindrical
Specification designationISO
Spiral typeRight Hand
Tool applicationCross Hole; Drilling; Stack Drilling
Tool materialCarbide
Web configurationParallel
Web thinningX-Thinned
