Mitsubishi
0.5906" Carbide Drill Bit, TiAlN, 140° point - Mitsubishi 694840
MFR# 694840Series MVE
$309.69List $377.15
Save 17%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description

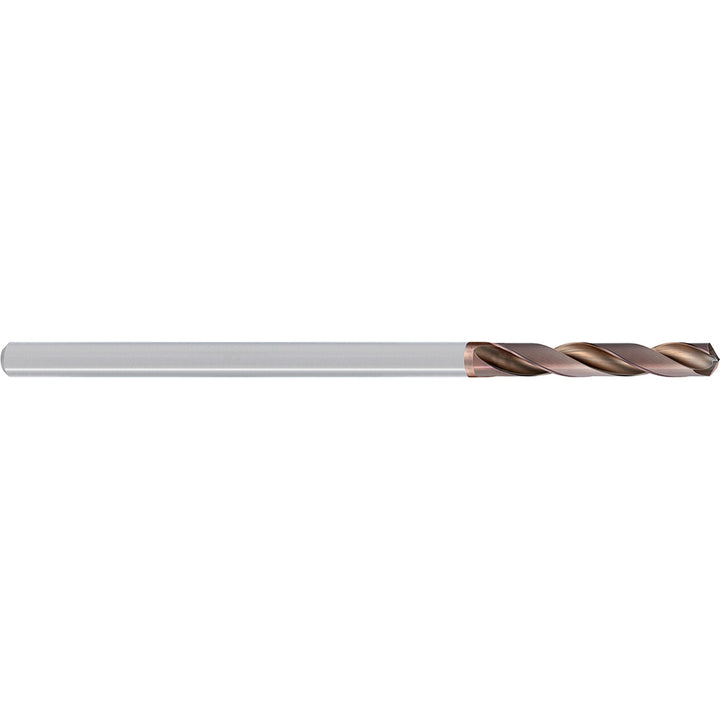

The Mitsubishi 694840 is a 0.5906" Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. Series MVE.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance; High Precision
Drill bit size0.5906
Drill point angle140
Drill point length0.1063
Flute by diameter ratio2xD
Flute length2.3110
Flute typeHelical
Maximum drilling depth1.2874
Number of flutes2
Overall length4.4764
Point typeX-Thinning
Primary workpiece materialSteel
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Structural Steel; Tempered Steel; Nickel Alloy; Nickel; Iron; High Strength Bronze; Hard Material; Hardened Steel; Copper; Cast Iron; Carbon Steel; Bronze; Brass
Shank diameter0.6299
Shank length2.1654
Shank typeCylindrical
Specification designationISO
Spiral typeRight Hand
Tool applicationCross Hole; Drilling; Stack Drilling
Tool materialCarbide
Web configurationParallel
Web thinningX-Thinned
