Mitutoyo

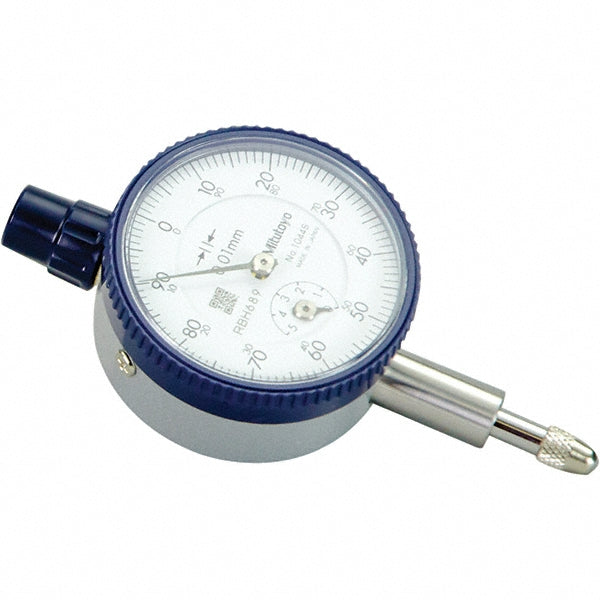

Dial Indicator - Mitutoyo 1044AB
MFR# 1044AB
$111.57List $132.00
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 1044AB is a dial indicator. Meets ISO/JIS.
Specifications
Accuracy (mm)0.0100
Agdgpno0
Back typeFlat
Dial colorWhite
Dial diameter (mm)40.00
Dial graduation (mm)0.0100
Dial reading0-100
FeaturesCrystal is Glare-Free; Scratch-Resistant
IncludesGreen Limit Markers; Plastic Case
Maximum measurement (mm)5.00
Measuring force n1.50
Minimum measurement (mm)0.00
Overall length (mm)80.00
Range per revolution (mm)1.00
Revolution counterYes
StandardsISO/JIS
Stem diameter (mm)8.00
Stem length (mm)13.00
Thread sizeM2.5 x 0.45
