Mitutoyo

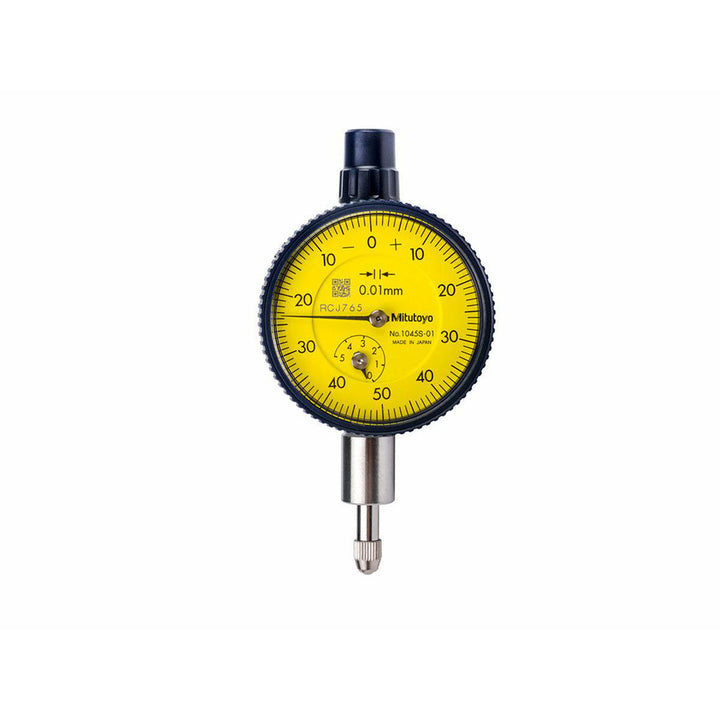

Dial Indicator - Mitutoyo 1045A
MFR# 1045A
$111.57List $132.00
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 1045A is a dial indicator. Meets ISO/JIS.
Specifications
Accuracy (mm)0.0130
Agdgpno1
Back typeLug
Dial colorWhite
Dial diameter (mm)40.00
Dial graduation (mm)0.0100
Dial reading0-50
FeaturesCrystal is Glare-Free; Scratch-Resistant
IncludesGreen Limit Markers; Plastic Case
Maximum measurement (mm)5.00
Measuring force n1.40
Minimum measurement (mm)0.00
Overall length (mm)80.00
Range per revolution (mm)1.00
Revolution counterYes
StandardsISO/JIS
Stem diameter (mm)8.00
Stem length (mm)13.00
Thread sizeM2.5 x 0.45
Unit of measureMetric
