Mitutoyo

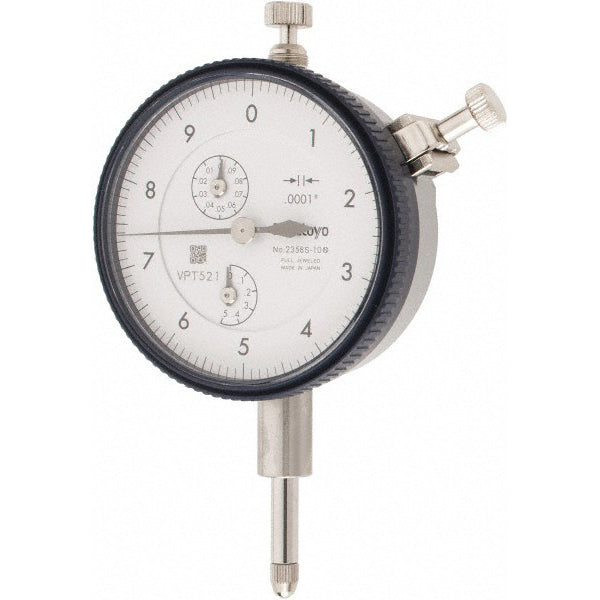

0.5000" Dial Indicator, 0.000100" grad - Mitutoyo 2358A-10
MFR# 2358A-10
$222.24List $267.58
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 2358A-10 is a 0.5000" dial indicator. 0.000100" graduation. Meets ANSI/AGD.
Specifications
Accuracy0.000800
Agdgpno2
Back typeLug
Bearing typeJeweled
Dial colorWhite
Dial diameter in2-9/32
Dial graduation0.000100
Dial reading0-10
Maximum measurement in1/2
Measuring force n2.00
Overall length (mm)102.50
Range per revolution0.0100
Revolution counterYes
StandardsANSI/AGD
Stem diameter0.3750
Stem length (mm)13.60
Thread size#4-48
Unit of measureEnglish
