Mitutoyo

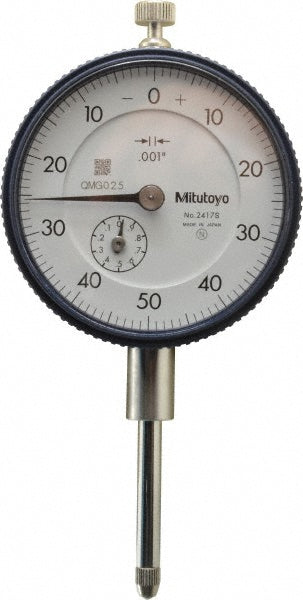

1.0000" Dial Indicator, 0.001000" grad - Mitutoyo 2417A
MFR# 2417A
$127.90List $154.00
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 2417A is a 1.0000" dial indicator. 0.001000" graduation. Meets ANSI/AGD.
Specifications
Accuracy0.002000
Agdgpno2
Back typeLug
Dial colorWhite
Dial diameter in2-1/4
Dial graduation0.001000
Dial reading0-50-0
Maximum measurement in1
Measuring force n1.80
Overall length (mm)115.70
Range per revolution0.1000
Revolution counterYes
StandardsANSI/AGD
Stem diameter0.3750
Stem length (mm)13.60
Thread size#4-48
Unit of measureEnglish
