Mitutoyo

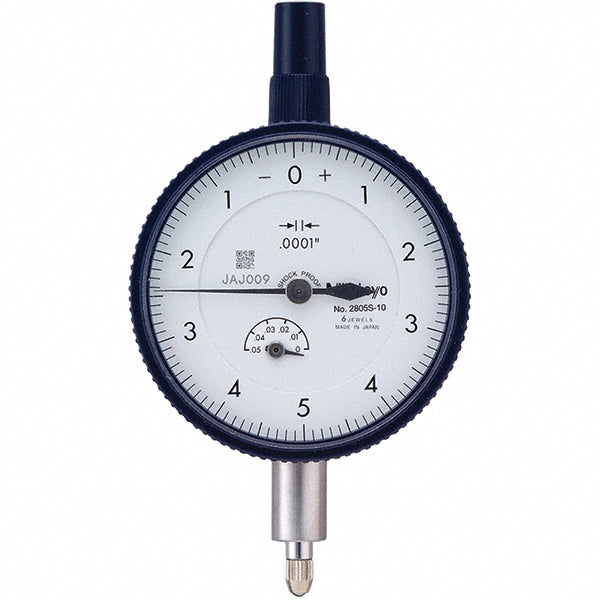

0.0500" Dial Indicator, 0.000100" grad - Mitutoyo 2805AB-10
MFR# 2805AB-10
$180.04List $213.00
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 2805AB-10 is a 0.0500" dial indicator. 0.000100" graduation. Meets ANSI/AGD.
Specifications
Accuracy0.000100
Agdgpno0
Back typeFlat
Bearing typeJeweled
Dial colorWhite
Dial diameter (mm)57.00
Dial graduation0.000100
Dial reading0-5-0
FeaturesJeweled bearing; Shockproof
Maximum measurement0.0500
Measuring force n2.00
Overall length (mm)100.50
Range per revolution0.0100
Revolution counterYes
StandardsANSI/AGD
Stem diameter in3/8
Stem length (mm)13.60
Thread size#4-48
