Mitutoyo

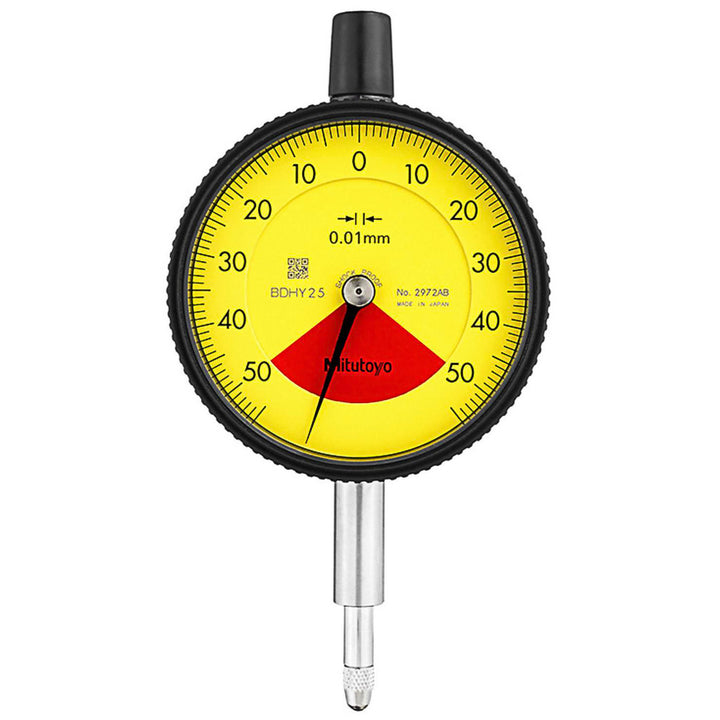

Dial Indicator - Mitutoyo 2972AB
MFR# 2972AB
$90.44List $107.00
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 2972AB is a dial indicator. Meets ISO/JIS.
Specifications
Accuracy (mm)0.0400
Agdgpno0
Back typeFlat
Dial colorWhite
Dial diameter (mm)57.00
Dial graduation (mm)0.0100
Dial reading50-0-50
FeaturesDustproof; Shockproof
Maximum measurement (mm)1.00
Measuring force n0.4 to 1.4
Overall length (mm)109.20
Range per revolution (mm)1.40
Revolution counterNo
StandardsISO/JIS
Stem diameter (mm)8.00
Stem length (mm)19.80
Thread sizeM2.5 x 0.45
