Mitutoyo

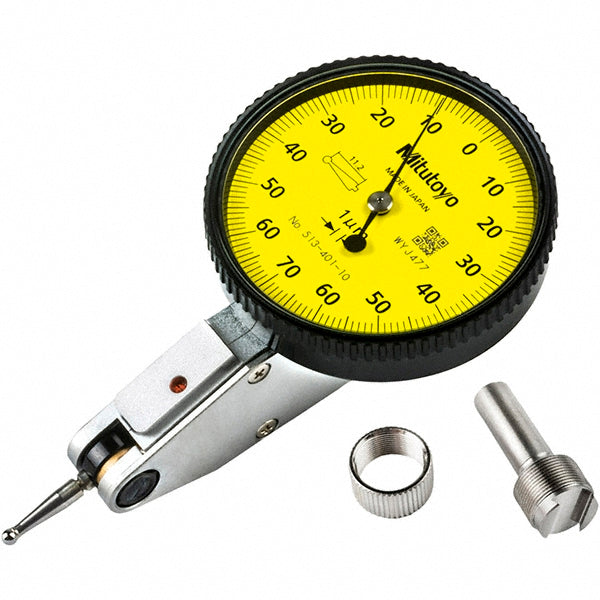

Dial Indicator - Mitutoyo 513-401-10H
MFR# 513-401-10HSeries 513
$211.80List $255.00
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 513-401-10H is a dial indicator.
Specifications
Accuracy micro m10.00
AttachmentsYes
Ball diameter0.0800
Bearing typeJeweled
Contact point length (mm)12.80
ContentsContact Point; Dial Indicator; Knurled Clamp Ring; Stem
Dial colorYellow
Dial diameter (mm)40.00
Dial graduation (mm)0.0010
Dial reading0-70-0
FeaturesAutomatic Reversal; Carbide-Tipped; Durable; Dust and Oil Proof; Glare-Free Crystal; High-Impact Resistance; No-Clutch Structure; O-Ring Seal; Scratch-Resistant
Indicator styleHorizontal
Maximum measurement (mm)0.14
Number of contact points included1
Range per revolution (mm)0.14
StyleHorizontal
