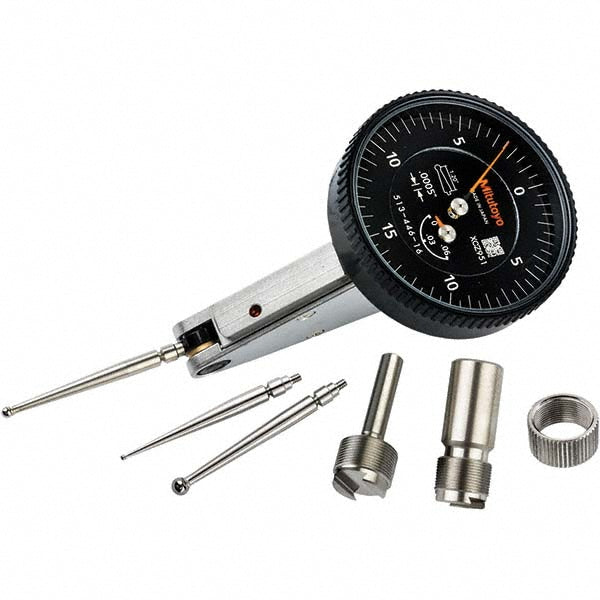

0.0600" Dial Indicator, 0.000500" grad - Mitutoyo 513-446-16A

Mitutoyo

0.0600" Dial Indicator, 0.000500" grad - Mitutoyo 513-446-16A

MFR# 513-446-16ASeries 513

$254.15List $306.00 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Mitutoyo 513-446-16A is a 0.0600" dial indicator. 0.000500" graduation.

Specifications

Accuracy0.000500
AttachmentsYes
Ball diameter0.0790
Contact point length1.3347
ContentsContact Point; Dial Indicator; Knurled Clamp Ring; Stem
Dial colorBlack
Dial diameter (mm)40.00
Dial graduation0.000500
Dial reading0-15-0
FeaturesAutomatic Reversal; Carbide-Tipped; Durable; Dust and Oil Proof; Glare-Free Crystal; High-Impact Resistance; No-Clutch Structure; O-Ring Seal; Scratch-Resistant
Indicator styleHorizontal
Maximum measurement0.0600
Number of contact points included1
StyleHorizontal
