Mitutoyo

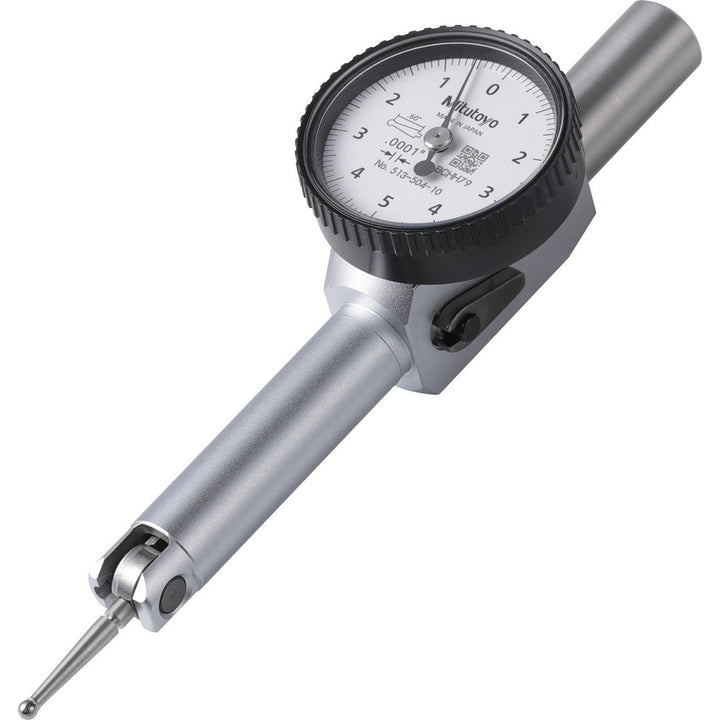

0.0100" Dial Indicator, 0.000100" grad - Mitutoyo 513-504-10E
MFR# 513-504-10E
$174.96List $207.00
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 513-504-10E is a 0.0100" dial indicator. 0.000100" graduation.
Specifications
Accuracy0.000200
AttachmentsYes
Ball diameter0.0790
Bearing typeJeweled
CalibratedNo
Contact point length0.7000
Contact point swivel angle220
ContentsContact Point; Dial Indicator; Spanner; Stem
Dial colorWhite
Dial diameter (mm)33.00
Dial graduation0.000100
Dial reading0-5-0
FeaturesAutomatic Reversal; Carbide-Tipped; Durable; Dust and Oil Proof; Glare-Free Crystal; High-Impact Resistance; No-Clutch Structure; O-Ring Seal; Scratch-Resistant
Maximum measurement0.0100
Mount typeDovetail
Number of contact points included2
Range per revolution0.0100
StyleHorizontal
