Mitutoyo
0.0100" Dial Indicator, 0.000100" grad - Mitutoyo 513-504-10T
MFR# 513-504-10T
$204.32List $246.00
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

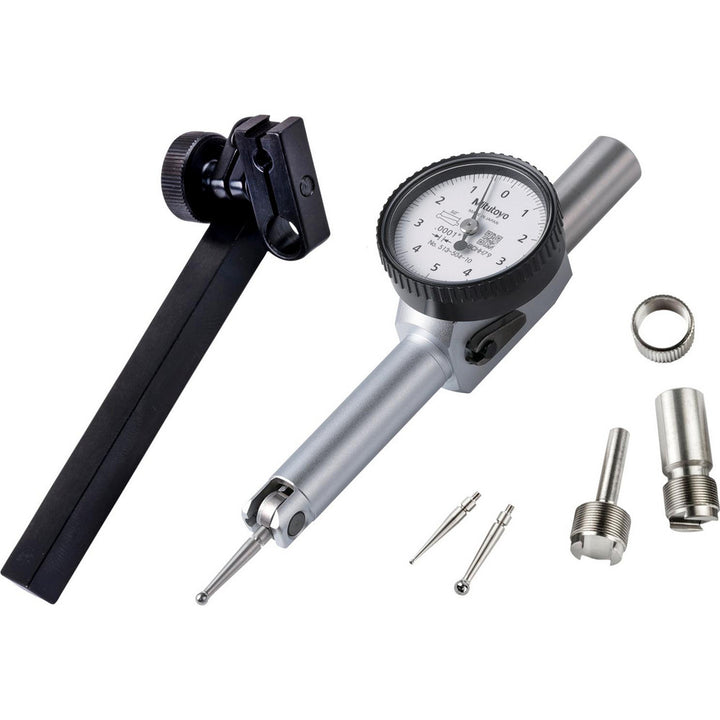

The Mitutoyo 513-504-10T is a 0.0100" dial indicator. 0.000100" graduation.
Specifications
Accuracy0.000200
AttachmentsYes
Ball diameter (mm)2.00
Bearing typeJeweled
CalibratedNo
Contact point length0.7000
Contact point swivel angle220
Contents(2) Contact Point; Holding Rod; Inch Holding Bar; Stem; Swivel Clamp
Dial colorWhite
Dial diameter (mm)33.00
Dial graduation0.000100
Dial reading0-5-0
FeaturesAutomatic Reversal; Carbide-Tipped; Durable; Dust and Oil Proof; Glare-Free Crystal; High-Impact Resistance; No-Clutch Structure; O-Ring Seal; Scratch-Resistant
Maximum measurement0.0100
Mount typeDovetail
Number of contact points included2
Range per revolution0.0100
StyleHorizontal
