Mitutoyo

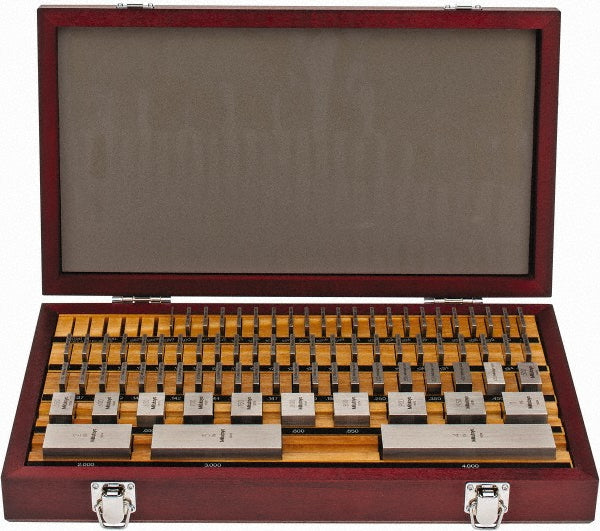

81-Piece Gage Block, Grade 0 - Mitutoyo 516-402-26
MFR# 516-402-26
$3,430.17List $4,130.00
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 516-402-26 is a steel gage block. Meets ASME B89.1.9-2002.
Specifications
Accuracy grade0
Certification includedYes
IncludesInspection Certificate; Wooden Case
Individually serializedYes
MaterialSteel
Maximum size4.0000
Minimum size0.0500
Number of pieces81
StandardsASME B89.1.9-2002
Step increments in(19) 0.05; (4) 1.000; (49) 0.001; (9) 0.0001
Tolerance micro inch10 (3); 12 (4); 5 (0.05-0.4); 6 (0.45-1); 8 (2)
