Mitutoyo

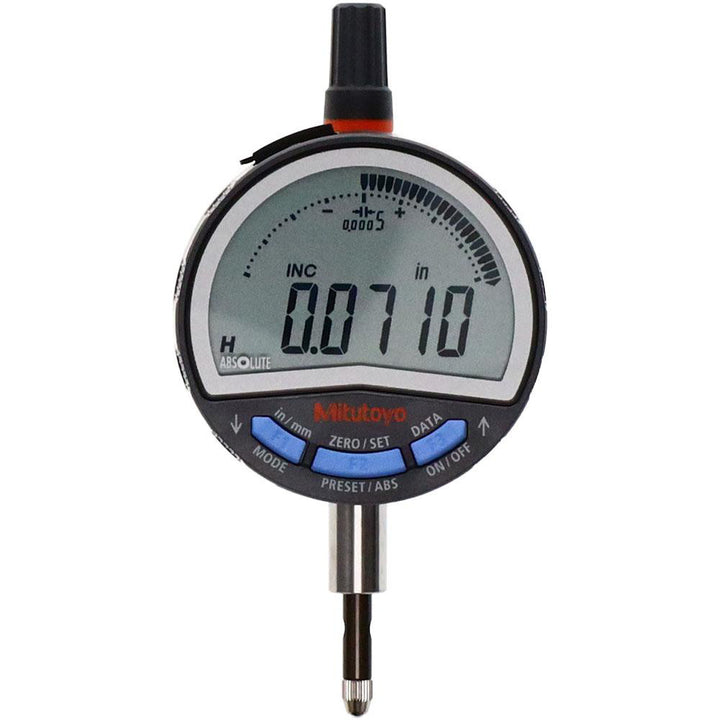

0.5000" Dial Indicator, +/-.001" accuracy - Mitutoyo 543-717B
MFR# 543-717B
$552.71List $646.00
Save 14%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 543-717B is a 0.5000" dial indicator.
Specifications
Accuracy+/-.001
Back typeFlat
Batteries includedYes
CalibratedNo
Connection typeStraight
Contact point materialCarbide
Display typeLCD
FeaturesTolerance judgement can be performed by setting upper and lower tolerance limits.; Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.; An analog bar has been integrated to make
IncludesCR2032 Battery
Maximum measurement0.5000
Measuring force n1.5
Minimum measurement (mm)0.00
Power sourceBattery
Resolution0.0005
Unit of measureInch:Metric
