Mitutoyo

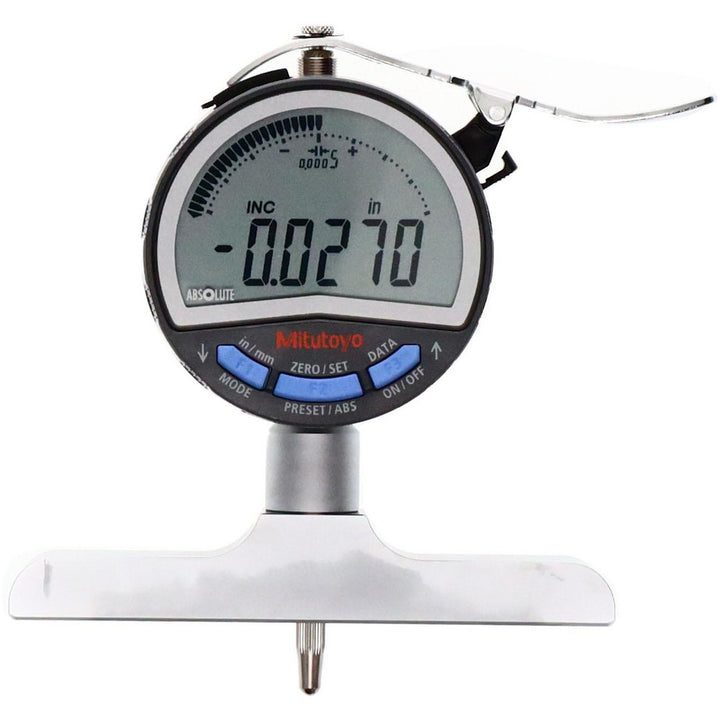

8.0000" Depth Gage, +/-.001" accuracy - Mitutoyo 547-218A
MFR# 547-218A
$533.86List $635.00
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 547-218A is a 8.0000" carbide-tipped depth gage.
Specifications
Accuracy+/-.001
Base flatness0.000200
Base length in4
CalibratedNo
ColorSilver; Black
FeaturesCan keep track of the origin point once set for the entire life of the battery.; The bottom surface of the base is hardened, ground, and lapped for highest degree of flatness.
IncludesExtension rod; Battery
MaterialCarbide-Tipped
Maximum measurement8.0000
Measuring force n0 to 1.5
Minimum measurement0.0000
Overall height0.8000
Resolution0.0005
Rod length4
Rod typeSolid
Water resistance ratingNone
