NTK

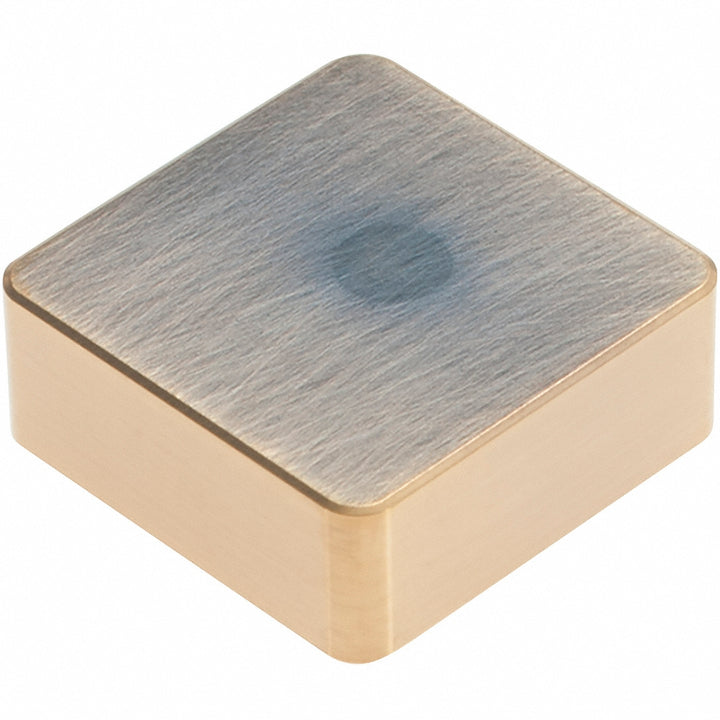

SNGN 120412 Z02025 Ceramic Insert, Grade ZC4, TiN - NTK 7901561
MFR# 7901561ISO/ANSI# SNG433Z0825Series SNG
$19.84List $25.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeZC4
MaterialCeramic
CoatingTiN
Description
The NTK 7901561 is a SNGN 120412 Z02025 ceramic indexable insert, grade ZC4, TiN coated. Suited for cast iron, hard material.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle90degree
Industry standard numberSNG433Z0825
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeSquare
Insert size code433
Insert styleSNG
Insert thickness in3/16
Iso codeSNGN 120412 Z02025
Length range0.5000 - 0.6000
Manufacturers catalog number7901561
Manufacturer gradeZC4
Material gradeAlumina TiC
Maximum depth of cut0.1667
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
