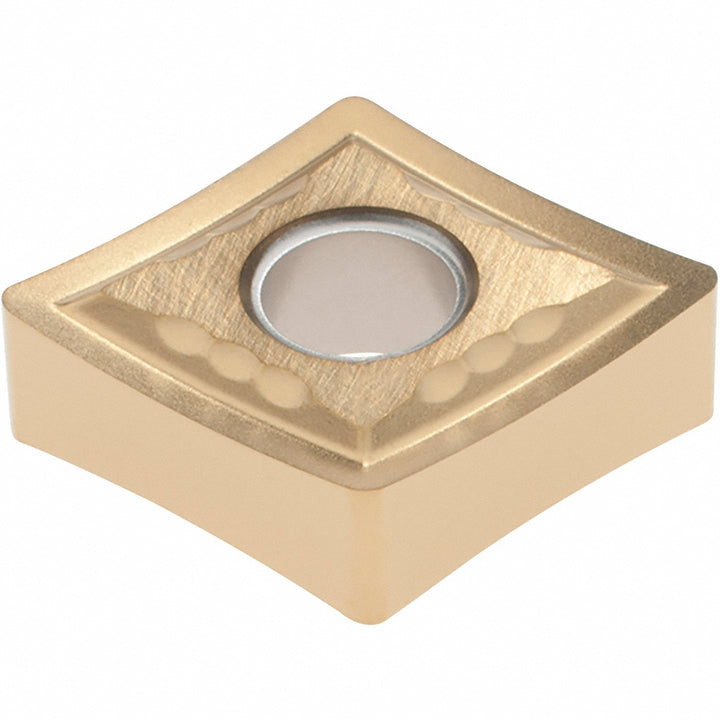

CNGG 120408 FNZP Carbide Insert, Grade ZM3, TiN - NTK 7901647

NTK

CNGG 120408 FNZP Carbide Insert, Grade ZM3, TiN - NTK 7901647

MFR# 7901647ISO/ANSI# CNGG432FN(ZP)Series CNGG

$23.07List $29.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeZM3
MaterialCarbide
CoatingTiN

Description

The NTK 7901647 is a CNGG 120408 FNZP carbide indexable insert, grade ZM3, TiN coated. Suited for steel, stainless steel, non-ferrous metal.

Specifications

Chip breakerZP
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNGG432FN(ZP)
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG 120408 FNZP
Length range0.5000 - 0.6000
Manufacturers catalog number7901647
Manufacturer gradeZM3
Material gradeMicrograin
Maximum depth of cut0.1693
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal
RakeNegative
Relief angle0
Secondary workpiece materialNon-Ferrous Metal
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
