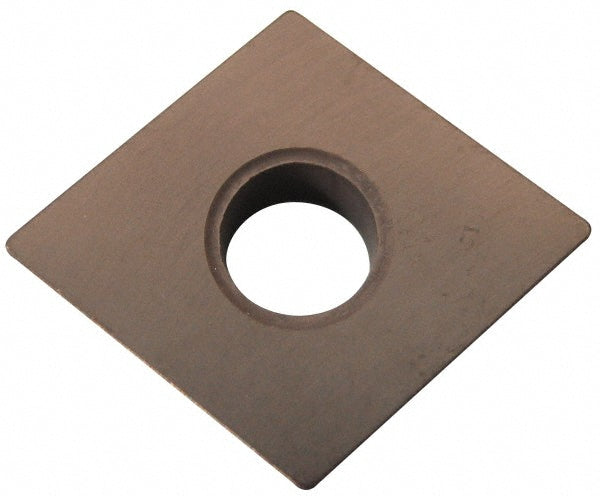

CNGA 120408 T01225 Ceramic Insert, Grade HC2 - NTK 7901827

NTK

CNGA 120408 T01225 Ceramic Insert, Grade HC2 - NTK 7901827

MFR# 7901827ISO/ANSI# CNGA432T0525Series CNGA

$13.72List $17.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeHC2
MaterialCeramic

Description

The NTK 7901827 is a CNGA 120408 T01225 ceramic indexable insert, grade HC2. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNGA432T0525
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCeramic
Insert shapeDiamond 80
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA 120408 T01225
Length range0.5000 - 0.6000
Manufacturers catalog number7901827
Manufacturer gradeHC2
Material gradeAlumina TiC
Maximum depth of cut0.1693
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
