NTK

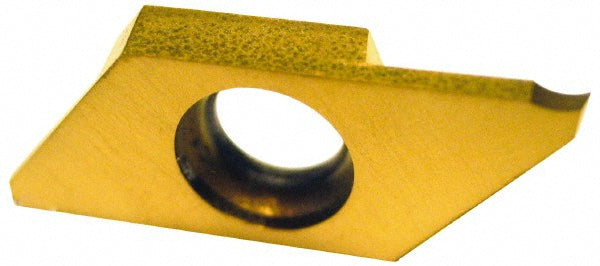

Solid Carbide Insert, Grade VM1, TiCN - NTK 7901874
MFR# 7901874
$44.91List $56.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeVM1
MaterialSolid Carbide
CoatingTiCN
Description
The NTK 7901874 is a solid carbide indexable insert, grade VM1, TiCN coated.
Specifications
ChipbreakerFLV
Coating finishTiCN
Coating processPVD
Cutting height0.3150
Cutting width0.0591
Hole diameter0.4720
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert styleCTP
Lead angle20
Lead angle directionLeft Hand
Manufacturer gradeVM1
Material gradeMicrograin
Maximum depth of cut0.2640
Multi use toolNo
Overall length0.7874
Overall width0.0980
Relief angle0.00
