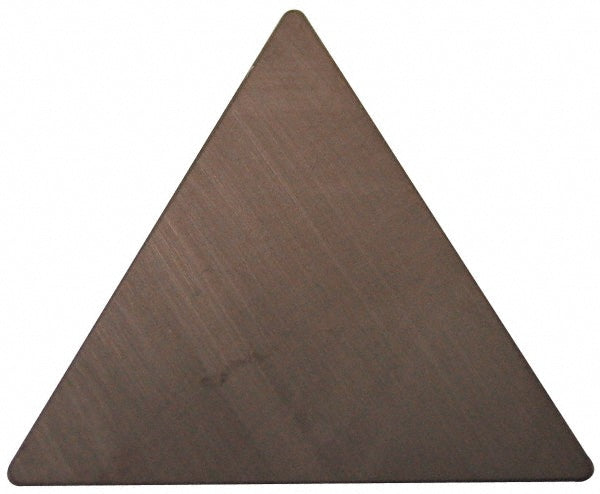

TPGN 160308 T01225 Ceramic Insert, Grade HC2 - NTK 7902036

NTK

TPGN 160308 T01225 Ceramic Insert, Grade HC2 - NTK 7902036

MFR# 7902036ISO/ANSI# TPG322T0525Series TPG

$13.33List $17.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeHC2
MaterialCeramic

Description

The NTK 7902036 is a TPGN 160308 T01225 ceramic indexable insert, grade HC2. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1730
Included angle60degree
Industry standard numberTPG322T0525
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6500
Insert materialCeramic
Insert shapeTriangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN 160308 T01225
Length range0.6500 - 0.7000
Manufacturers catalog number7902036
Manufacturer gradeHC2
Material gradeAlumina TiC
Maximum depth of cut0.2167
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron
RakePositive
Rake angle0
Relief angle11
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width0.6500in
Wiper edgeNo
