NTK

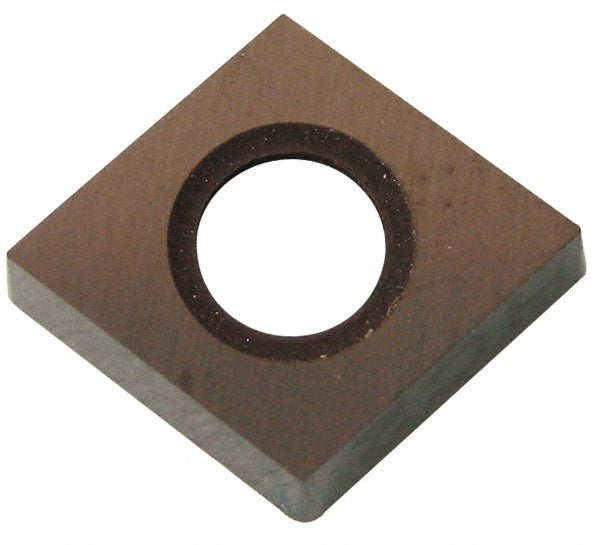

Diamond 1/4" IC Ceramic Insert, Grade HC2 - NTK 7902156
MFR# 7902156ISO/ANSI# CCGW21.52T0225Series CCGW
$9.82List $12.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeHC2
MaterialCeramic
Description
The NTK 7902156 is a ceramic indexable insert, grade HC2. Suited for cast iron.
Specifications
Chip breakerFlat Top
Clearance codeC
Coating processUncoated
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberCCGW21.52T0225
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2560
Insert materialCeramic
Insert shapeDiamond
Insert size code21.52
Insert styleCCGW
Insert thickness in3/32
Length range0.0000 - 0.3000
Manufacturers catalog number7902156
Manufacturer gradeHC2
Material gradeAlumina TiC
Maximum depth of cut0.0853
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
