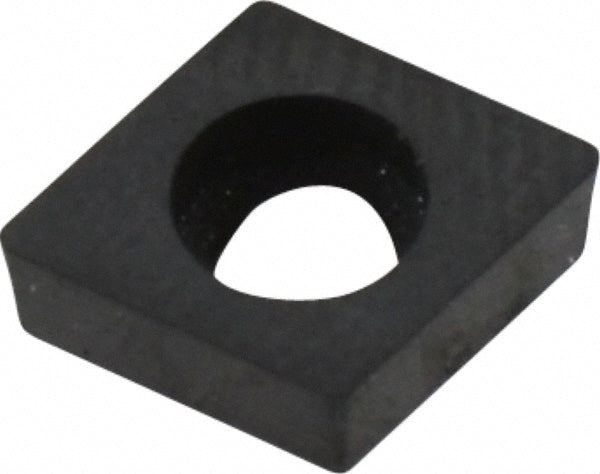

CCGW 060204 T00525 Ceramic Insert, Grade HC2 - NTK 7902157

NTK

CCGW 060204 T00525 Ceramic Insert, Grade HC2 - NTK 7902157

MFR# 7902157ISO/ANSI# CCGW21.51T0225Series CCGW

$9.82List $12.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeHC2
MaterialCeramic

Description

The NTK 7902157 is a CCGW 060204 T00525 ceramic indexable insert, grade HC2. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCCGW21.51T0225
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2560
Insert materialCeramic
Insert shapeDiamond 80
Insert size code21.51
Insert styleCCGW
Insert thickness in3/32
Iso codeCCGW 060204 T00525
Length range0.0000 - 0.3000
Manufacturers catalog number7902157
Manufacturer gradeHC2
Material gradeAlumina TiC
Maximum depth of cut0.0853
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
