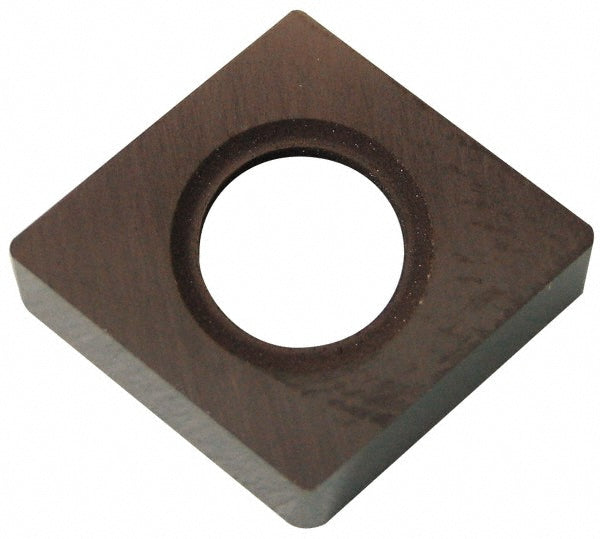

CCGW 09T304 T01025 Ceramic Insert, Grade HC2 - NTK 7902159

NTK

CCGW 09T304 T01025 Ceramic Insert, Grade HC2 - NTK 7902159

MFR# 7902159ISO/ANSI# CCGW32.51T0425Series CCGW

$15.21List $19.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeHC2
MaterialCeramic

Description

The NTK 7902159 is a CCGW 09T304 T01025 ceramic indexable insert, grade HC2. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberCCGW32.51T0425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialCeramic
Insert shapeDiamond
Insert size code32.51
Insert styleCCGW
Insert thickness in5/32
Iso codeCCGW 09T304 T01025
Length range0.3000 - 0.4000
Manufacturers catalog number7902159
Manufacturer gradeHC2
Material gradeAlumina TiC
Maximum depth of cut0.1273
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
