NTK

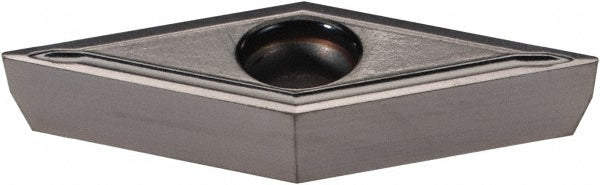

VCGT2208FN(AM3) Carbide Insert, Grade VM1, TiCN - NTK 7902324
MFR# 7902324ISO/ANSI# VCGT2208FN(AM3)Series VCGT
$19.57List $25.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeVM1
MaterialCarbide
CoatingTiCN
Description
The NTK 7902324 is a VCGT2208FN(AM3) carbide indexable insert, grade VM1, TiCN coated. Suited for steel, stainless steel, non-ferrous metal.
Specifications
Chip breakerAM3
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0070
Cutting edge styleSharp
Full radiusNo
Included angle35degree
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8820
Insert materialCarbide
Insert shapeDiamond 35
Insert size code2208
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT2208FN(AM3)
Length range0.7000 - 10.0000
Manufacturers catalog number7902324
Manufacturer gradeVM1
Material gradeMicrograin
Maximum depth of cut0.1470
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal
RakePositive
Rake angle6
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
