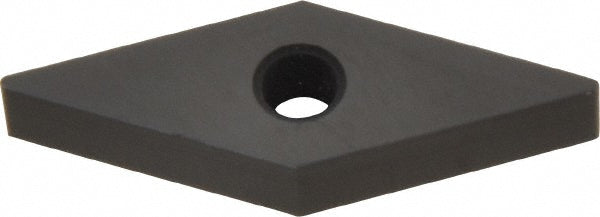

VNGA 160404 T01025 Ceramic Insert, Grade HC2 - NTK 7902986

NTK

VNGA 160404 T01025 Ceramic Insert, Grade HC2 - NTK 7902986

MFR# 7902986ISO/ANSI# VNGA331T0425Series VNGA

$26.13List $33.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeHC2
MaterialCeramic

Description

The NTK 7902986 is a VNGA 160404 T01025 ceramic indexable insert, grade HC2. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNGA331T0425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCeramic
Insert shapeDiamond 35
Insert size code331
Insert styleVNGA
Insert thickness in3/16
Iso codeVNGA 160404 T01025
Length range0.7000 - 10.0000
Manufacturers catalog number7902986
Manufacturer gradeHC2
Material gradeAlumina TiC
Maximum depth of cut0.2180
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
