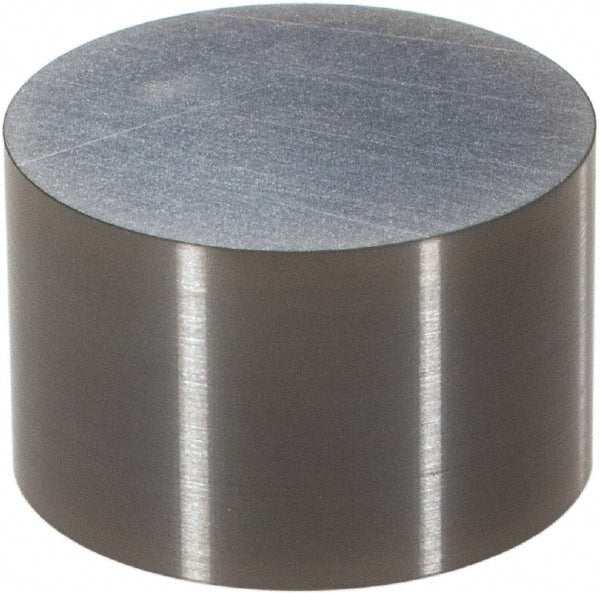

RNGN 120700 T00520 Ceramic Insert, Grade SX9 - NTK 7903663

NTK

RNGN 120700 T00520 Ceramic Insert, Grade SX9 - NTK 7903663

MFR# 7903663ISO/ANSI# RNG45T0220Series RNG

$30.87List $39.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeRound
GradeSX9
MaterialCeramic

Description

The NTK 7903663 is a RNGN 120700 T00520 ceramic indexable insert, grade SX9. Suited for cast iron, superalloys & titanium.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/4
Cutting edge styleChamfered & Honed
Full radiusYes
Hole diameter0.2030
Included angle360degree
Industry standard numberRNG45T0220
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeRound
Insert size code45
Insert styleRNG
Insert thickness in5/16
Iso codeRNGN 120700 T00520
Length range0.5000 - 0.6000
Manufacturers catalog number7903663
Manufacturer gradeSX9
Material gradeSiAlON
Maximum depth of cut0.1667
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron; Superalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
