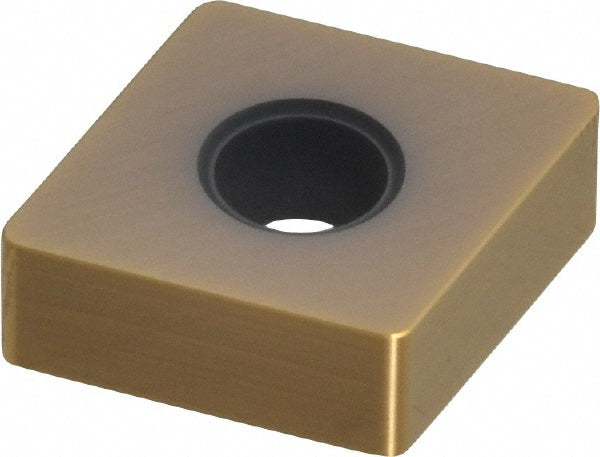

CNGA 120408 T01225 Ceramic Insert, Grade ZC4, TiN - NTK 7904617

NTK

CNGA 120408 T01225 Ceramic Insert, Grade ZC4, TiN - NTK 7904617

MFR# 7904617ISO/ANSI# CNGA432T0525Series CNGA

$19.49List $25.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeZC4
MaterialCeramic
CoatingTiN

Description

The NTK 7904617 is a CNGA 120408 T01225 ceramic indexable insert, grade ZC4, TiN coated. Suited for cast iron, hard material.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNGA432T0525
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCeramic
Insert shapeDiamond 80
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA 120408 T01225
Length range0.5000 - 0.6000
Manufacturers catalog number7904617
Manufacturer gradeZC4
Material gradeAlumina TiC
Maximum depth of cut0.1693
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
