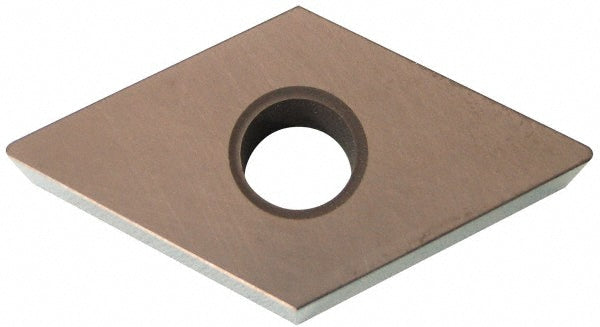

DNGA 150408 T01225 Ceramic Insert, Grade HC2 - NTK 7904767

NTK

DNGA 150408 T01225 Ceramic Insert, Grade HC2 - NTK 7904767

MFR# 7904767ISO/ANSI# DNGA150408Series DNGA

$16.06List $20.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeHC2
MaterialCeramic

Description

The NTK 7904767 is a DNGA 150408 T01225 ceramic indexable insert, grade HC2. Suited for cast iron.

Specifications

Ansi insert codeDNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle55
Industry standard numberDNGA432T0525
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2200
Insert materialCeramic
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA 150408 T01225
Iso insert codeDNGA150408
Iso size code150408
Length range0.7000 - 10.0000
Manufacturers catalog number7904767
Manufacturer gradeHC2
Material gradeAlumina TiC
Maximum depth of cut0.2034
Maximum depth of cut frac in13/64
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
