NTK

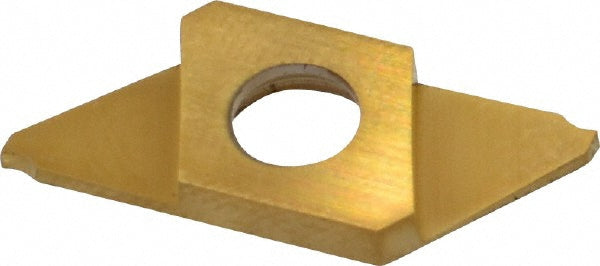

Solid Carbide Insert, Grade ZM3, TiN - NTK 7907358
MFR# 7907358Series CTP
$44.13List $56.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeZM3
MaterialSolid Carbide
CoatingTiN
Description
The NTK 7907358 is a solid carbide indexable insert, grade ZM3, TiN coated. Suited for non-ferrous metal.
Specifications
ChipbreakerFRN
Coating finishTiN
Coating processPVD
Corner radius0.0020
Cutting height0.3150
Cutting tool applicationCut-off
Cutting width0.0394
Hole diameter0.4720
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code10
Insert styleCTP
Lead angle0
Lead angle directionNeutral
Manufacturer gradeZM3
Material gradeMicrograin
Maximum depth of cut0.2640
Msc manufacturer number10FR/LN
Multi use toolNo
Overall length0.7870
Overall width (mm)2.50
Primary workpiece materialNon-Ferrous Metal
