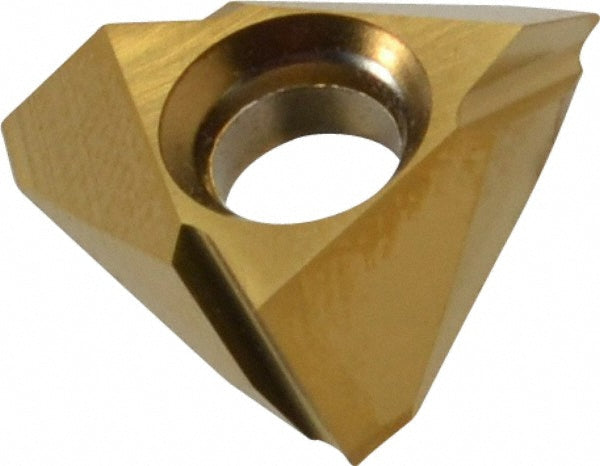

Triangle 3/8" IC Carbide Insert, Grade ZM3, TiN - NTK 7907808

NTK

Triangle 3/8" IC Carbide Insert, Grade ZM3, TiN - NTK 7907808

MFR# 7907808ISO/ANSI# TB3215RSeries TB

$53.10List $68.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeZM3
MaterialCarbide
CoatingTiN

Description

The NTK 7907808 is a carbide indexable insert, grade ZM3, TiN coated. Suited for steel, stainless steel, non-ferrous metal.

Specifications

Chip breakerCommon
Clearance codeB
Coating finishTiN
Coating processPVD
Corner radius0.0060
Cutting edge styleHoned
Full radiusNo
Included angle60degree
Industry standard numberTB3215R
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert length0.6500
Insert materialCarbide
Insert shapeTriangle
Insert size code3215
Insert styleTB32
Insert thickness in1/8
Length range0.6500 - 0.7000
Manufacturers catalog number7907808
Manufacturer gradeZM3
Material gradeMicrograin
Maximum depth of cut0.2167
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal
Relief angle13
StandardsANSI; ISO
Width0.6500in
Wiper edgeNo
