NTK

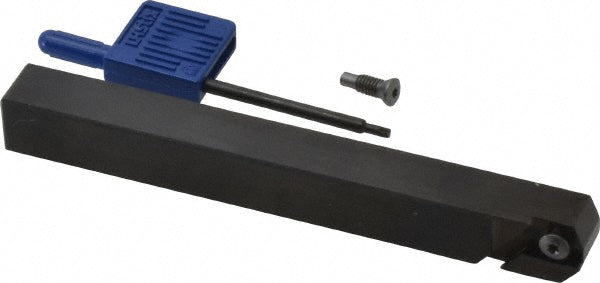

Indexable Cut-Off - NTK 7910081
MFR# 7910081
$110.77List $137.30
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The NTK 7910081 indexable cut-off.
Specifications
Compatible insert size codeCTP; CTPF R/L; CTPF R/LX; CTPX FR/L
Complete insert compatibilityCTPF R/L; CTPF R/LX; CTPX FR/L
Coolant throughNo
Cutting tool applicationCut-Off
Hand of holderLeft
Head height in1/2
Head length0.8661
Insert holding methodClamp
Maximum depth of cut0.2170
Maximum insert width0.0980
Maximum workpiece diameter0.4724
Overall length4.7240
Shank height in1/2
Shank width diameter in1/2
Toolholder materialSolid Carbide
Toolholder styleCTP
