Onsrud

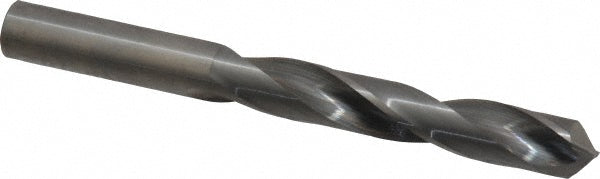

7/16" Solid Carbide Drill Bit, 118° point - Onsrud 67-827
MFR# 67-827Series 67-800
$195.61List $250.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
Flutes2
Description
The Onsrud 67-827 is a 7/16" Solid Carbide drill bit, 118° point. Suited for composite. 2-7/8 flute length, 4-1/2in overall length. Series 67-800.
Specifications
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in7/16
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute by diameter ratio7xD
Flute length in2-7/8
Flute typeSpiral
Maximum drilling depth in2-7/8
Number of flats0
Number of flutes2
Overall length in4-1/2in
Point type8 Facet
Primary workpiece materialComposite
Shank diameter in7/16in
Shank length in1-5/8in
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
