Onsrud

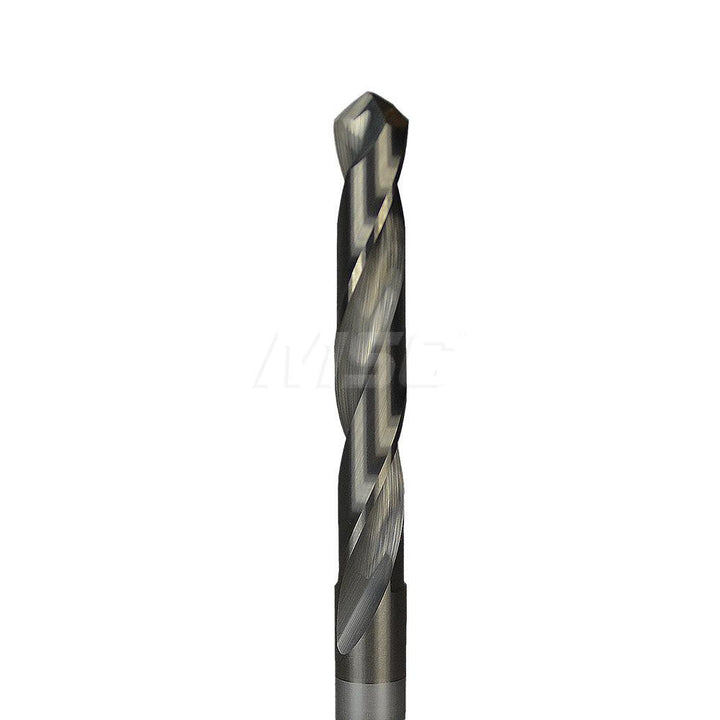

#9 Solid Carbide Drill Bit - Onsrud 67-884
MFR# 67-884Series 67-800
$58.95List $75.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Onsrud 67-884 is a #9 Solid Carbide drill bit. Suited for composites. 1-3/4 flute length, 3 overall length. Series 67-800.
Specifications
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.1960
Drill bit size range0.1500 - 0.2000
Drill bit size wire#9
Flute by diameter ratio9xD
Flute length in1-3/4
Flute typeRegular Spiral
Maximum drilling depth in1-3/4
Number of flats0
Number of flutes2
Overall length in3
Point type8 Facet
Primary workpiece materialComposites
Shank diameter0.1960
Shank length in1-1/4
Shank typeStraight
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationParallel
