Onsrud

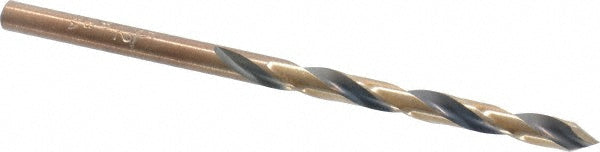

5/32" High Speed Steel Drill Bit, 60° point - Onsrud 70-506
MFR# 70-506Series 70-500
$7.66List $9.65
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/32
Flutes2
Description
The Onsrud 70-506 is a 5/32" High Speed Steel drill bit, 60° point. Suited for plastic. 1-15/16 flute length, 3-1/8in overall length. Series 70-500.
Specifications
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in5/32
Drill bit size range0.1500 - 0.2000
Drill point angle degrees60
Flute by diameter ratio12xD
Flute length in1-15/16
Flute typeSpiral
Maximum drilling depth in1-15/16
Number of flats0
Number of flutes2
Overall length in3-1/8in
Point typeStandard
Primary workpiece materialPlastic
Shank diameter in5/32in
Shank length in1-3/16in
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
