Onsrud

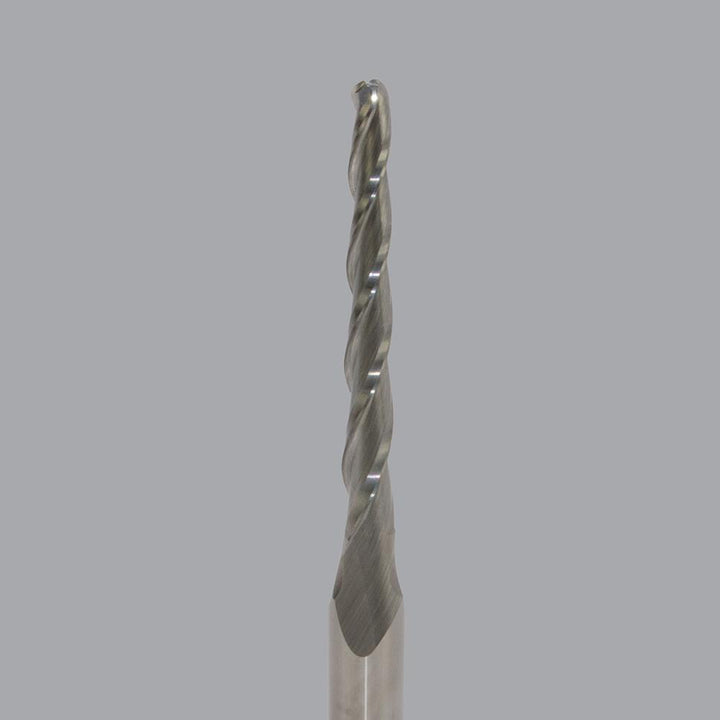

Spiral Router Bits - Onsrud 77-106
MFR# 77-106Series 77-100
$90.02List $115.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.1/8
Description
The Onsrud 77-106 spiral router bits. Series 77-100.
Specifications
Bit materialSolid Carbide
Corner radius in1/16
Cutter diameter in1/8
Cutting directionRight Hand
Flute typeUpcut
Length of cut in3/4
Material applicationAluminum; Plastics; Wood
Overall length in3
PilotedNo
Radius0.0630
Router styleBall End Taper
Shank diameter in1/4
Shank length in2-1/4
Taper angle per side5
