Onsrud

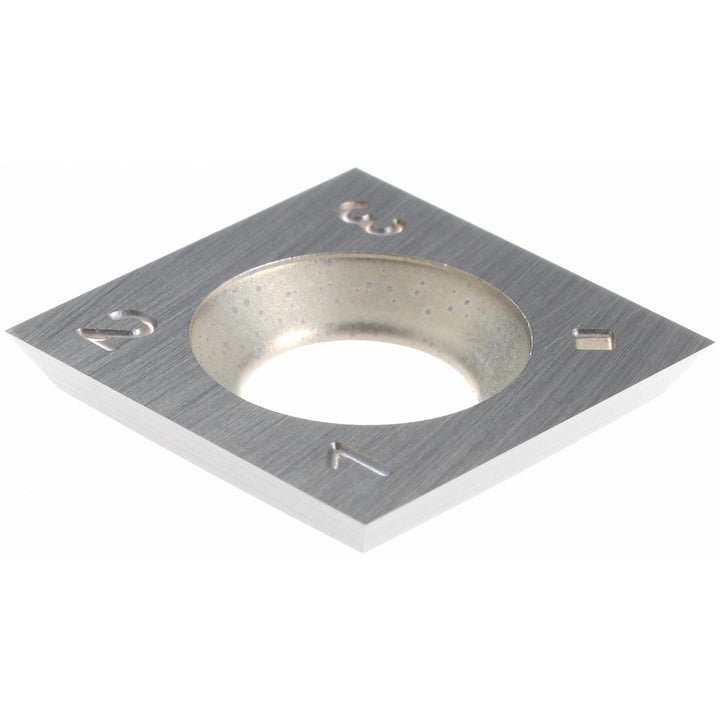

Diamond 1/2" IC Solid Carbide Insert - Onsrud 91-125
MFR# 91-125Series 91-000; 91-100
$76.21List $96.04
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10 (one package of 10)
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
MaterialSolid Carbide
Description
The Onsrud 91-125 is a solid carbide indexable insert.
Specifications
Chip breakerFlat Top
Coating processUncoated
Corner radius in3/64
Cutter series compatibilitySeries 91
Inscribed circle in1/2
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size160412
Insert styleVGPT
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog number91-125
Material applicationParticleboard; MDF; Balsa
Material gradeC2
Maximum depth of cut0.1250
Multi use toolNo
RakePositive
Relief angle7.00
Single or double sided insertSingle
Thickness in1/4
Thickness range0.2500 to 0.3500
