OSG

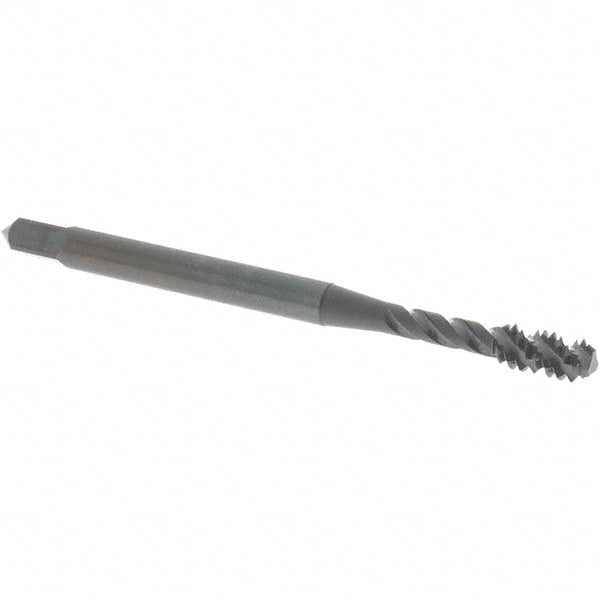

#6-32 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 0136101
MFR# 0136101Series 303
$25.44List $32.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
CoatingSteam Oxide
Description
The OSG 0136101 is a #6-32 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.2510
Number of flutes3
Overall length in2
OversizeNo
Shank diameter0.3810
Square length0.1875
Square size0.1100
Threads per inch32
Thread directionRight Hand
Thread length0.2480
Thread limitH3
Thread size in#6-32
Thread standardUNC
