OSG

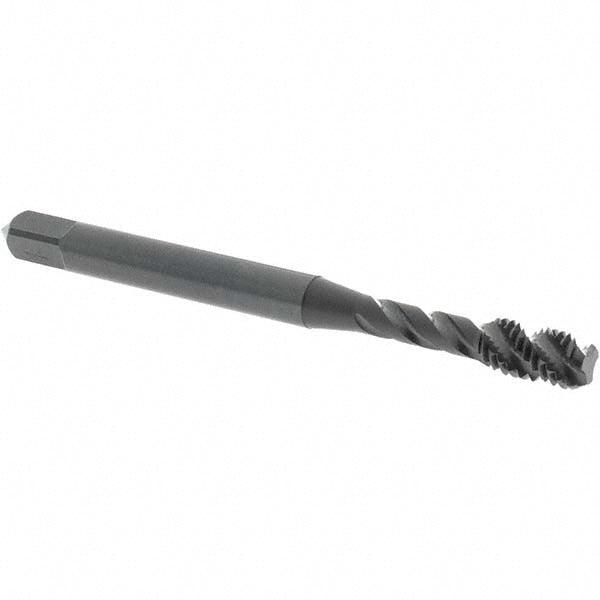

#10-32 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 0136901
MFR# 0136901Series 303
$26.02List $33.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingSteam Oxide
Description
The OSG 0136901 is a #10-32 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)118
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square length0.25
Square size0.152
Threads per inch32
Thread directionRight Hand
Thread length0.327
Thread limitH3
Thread size in#10-32
Thread standardUNF
