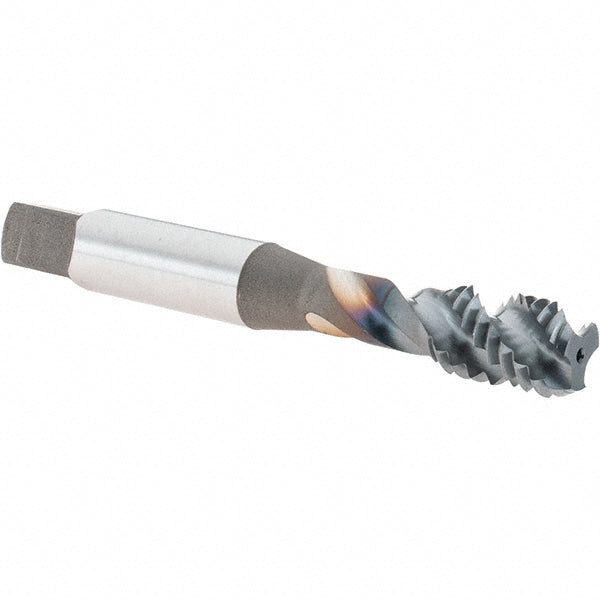

3/8-16 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 0138008
MFR# 0138008Series 303
$40.48List $51.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTiCN
Description
The OSG 0138008 is a 3/8-16 UNC Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.252
Number of flutes3
Overall length in2-15/16
Shank diameter0.381
Square length0.4375
Square size0.286
Threads per inch16
Thread directionRight Hand
Thread length0.5
Thread limitH5
Thread size in3/8-16
Thread standardUNC
