OSG

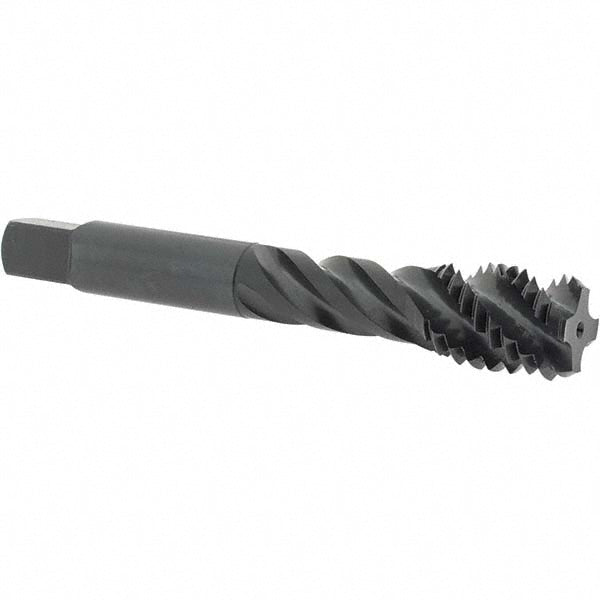

9/16-12 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 0139001
MFR# 0139001Series 303
$86.34List $110.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size9/16-12
CoatingSteam Oxide
Description
The OSG 0139001 is a 9/16-12 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferBottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)29.900000000000002
Number of flutes4
Overall length in3-19/32
OversizeNo
Shank diameter0.4290
Square length0.5
Square size0.322
Threads per inch12
Thread directionRight Hand
Thread length0.665
Thread limitH3
Thread size in9/16-12
Thread standardUNC
