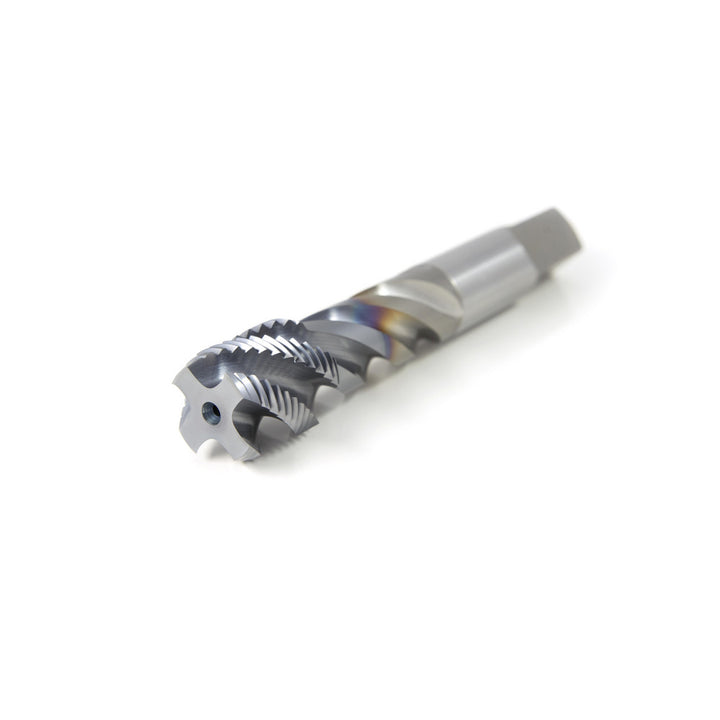

9/16-18 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 0139108
MFR# 0139108Series 303
$98.92List $126.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size9/16-18
CoatingTiCN
Description
The OSG 0139108 is a 9/16-18 UNF Vanadium High-Speed Steel tap with a TiCN finish. 4 flutes.
Specifications
ChamferBottoming
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.126
Number of flutes4
Overall length in3-19/32
Shank diameter0.48
Square length0.5
Square size0.322
Threads per inch18
Thread directionRight Hand
Thread length0.665
Thread limitH3
Thread size in9/16-18
Thread standardUNF
