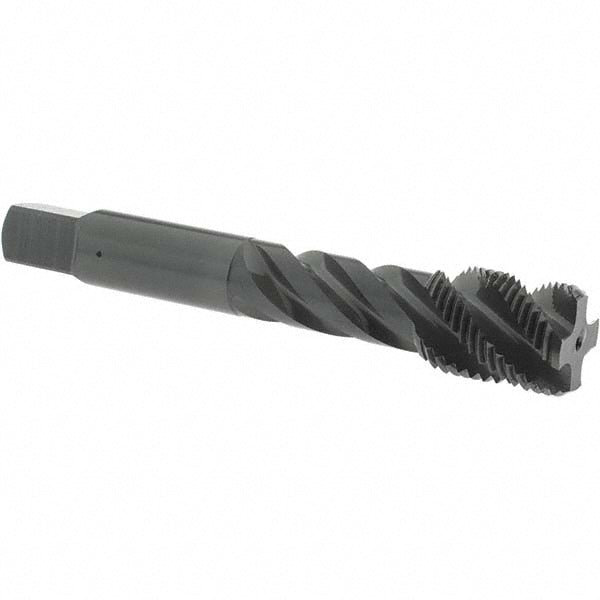

5/8-18 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 0139401
MFR# 0139401Series 303
$101.84List $130.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-18
CoatingSteam Oxide
Description
The OSG 0139401 is a 5/8-18 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.126
Number of flutes4
Overall length in3-13/16
OversizeNo
Shank diameter0.48
Square length0.5625
Square size0.36
Threads per inch18
Thread directionRight Hand
Thread length0.728
Thread limitH3
Thread size in5/8-18
Thread standardUNF
