OSG

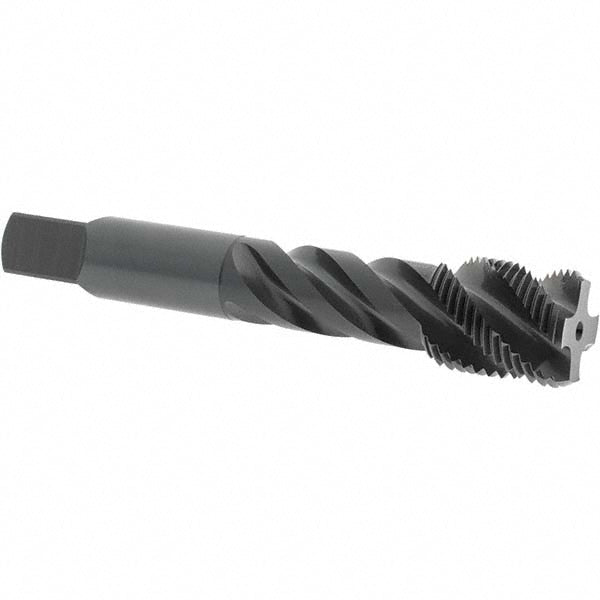

3/4-16 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 0139801
MFR# 0139801Series 303
$145.68List $183.59
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-16
CoatingSteam Oxide
Description
The OSG 0139801 is a 3/4-16 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.783
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.141
Square length0.6875
Square size0.442
Threads per inch16
Thread directionRight Hand
Thread length0.799
Thread limitH3
Thread size in3/4-16
Thread standardUNF
