OSG

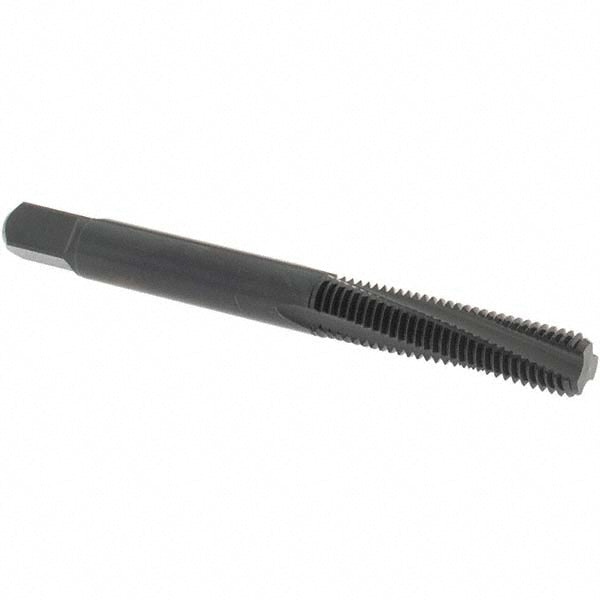

1/4-28 UNF Powdered Metal Tap, Steam Oxide - OSG 0140501
MFR# 0140501Series 313NI
$44.87List $57.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingSteam Oxide
Description
The OSG 0140501 is a 1/4-28 UNF Powdered Metal tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationStainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.255
Square length0.3125
Square size0.191
Threads per inch28
Thread directionRight Hand
Thread length0.996
Thread limitH3
Thread size in1/4-28
Thread standardUNF
