OSG

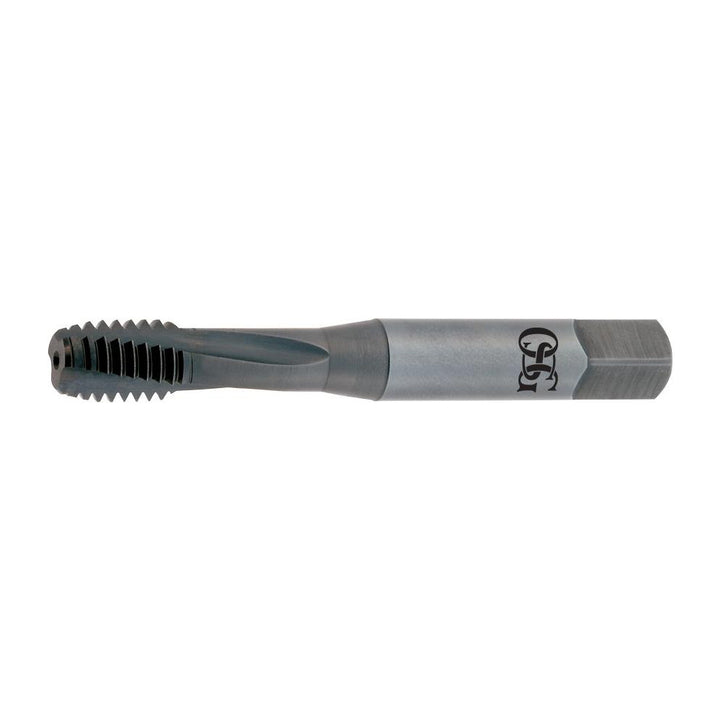

5/16-24 UNF Powdered Metal Tap, Steam Oxide - OSG 0140801
MFR# 0140801Series 313NI
$49.57List $63.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingSteam Oxide
Description
The OSG 0140801 is a 5/16-24 UNF Powdered Metal tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationStainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length0.752
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.168
Square length0.375
Square size0.238
Threads per inch24
Thread directionRight Hand
Thread length0.445
Thread limitH4
Thread size in5/16-24
Thread standardUNF
