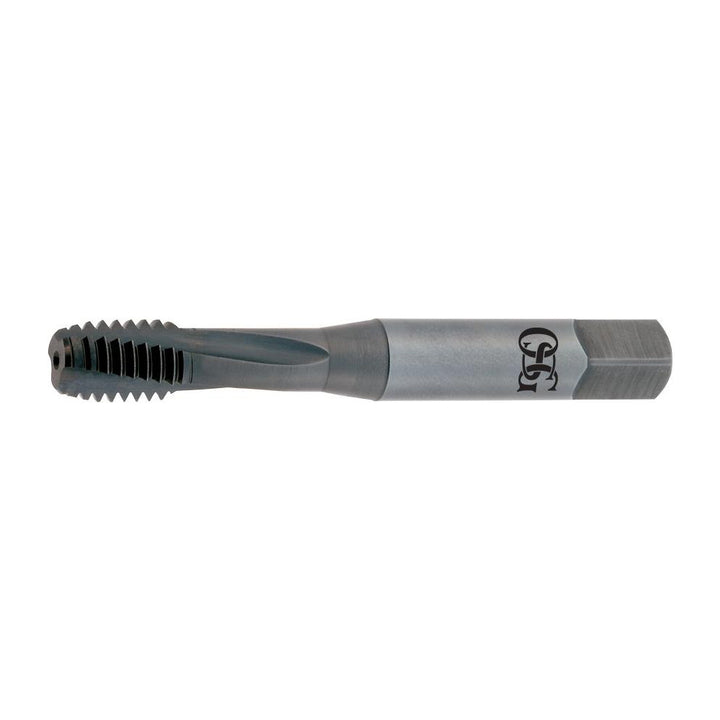

7/16-20 UNF Powdered Metal Tap, Steam Oxide - OSG 0141101
MFR# 0141101Series 313NI
$68.35List $87.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-20
CoatingSteam Oxide
Description
The OSG 0141101 is a 7/16-20 UNF Powdered Metal tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationStainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length0.866
Number of flutes3
Overall length in3-5/32
OversizeNo
Shank diameter0.194
Square length0.40625
Square size0.242
Threads per inch20
Thread directionRight Hand
Thread length0.571
Thread limitH3
Thread size in7/16-20
Thread standardUNF
