OSG

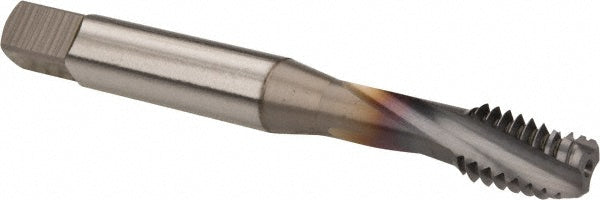

1/4-28 UNF Powdered Metal Tap, TiCN - OSG 0142708
MFR# 0142708Series 313
$39.38List $50.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingTiCN
Description
The OSG 0142708 is a 1/4-28 UNF Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialPowdered Metal
Material applicationAlloy Steel; Stainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length0.996
Number of flutes3
Overall length in2-1/2
Shank diameter0.255
Square length0.3125
Square size0.191
Threads per inch28
Thread directionRight Hand
Thread length0.398
Thread limitH3
Thread size in1/4-28
Thread standardUNF
